House extension design is the process of planning how new space attaches to an existing home, balancing the layout you want with structural limits, light, regulations and budget. It produces drawings and specifications that builders can price and build from, and that planners and building control can assess. Good design resolves practical and aesthetic problems before any work begins.
What does extension design actually involve?
Design starts with measuring the existing house and understanding how you live in it. A designer records room sizes, wall thicknesses, window positions, drainage runs and levels. This survey becomes the base on which every later decision rests.
From there, the work moves through several stages. Most projects follow a recognisable sequence, even on a modest scale:
- Brief and feasibility — agreeing what the extension must achieve and testing whether the site allows it.
- Concept design — early sketches showing layout options and how the new space connects to old rooms.
- Developed design — fixing dimensions, window sizes, ceiling heights and the relationship to the garden.
- Technical design — detailed drawings for construction, insulation, structure and services.
Alongside the look of a space, design covers things that are easy to underestimate. These include daylight, ventilation, where the boiler and radiators go, and how rainwater drains. A rear extension can darken the middle of a house unless rooflights or larger glazing are planned in. Sightlines from the kitchen to the garden, and the route people take through the home, are shaped at this point too.
Design also has to satisfy two separate approval systems. Planning permission governs what a building looks like and its impact on neighbours, while building regulations govern how it is constructed and how safe and efficient it is. Some extensions fall under permitted development, meaning full planning permission is not required, but they still need building regulations approval.
When is an architect worth it for an extension?
House extension design is the process of planning how new space attaches to an existing home, balancing the layout you want with structural limits, light, regulations and budget.
An architect is a designer registered with the Architects Registration Board, the UK body that protects the title. The value they add depends on how complex and ambitious the project is, rather than its sheer size.
For a straightforward box at the rear of a house, an architectural technologist or an experienced design-and-build firm may be enough. The decision often comes down to a few questions worth asking yourself early:
- Is the layout awkward, sloping or unusually shaped?
- Do you want a distinctive design rather than a standard add-on?
- Are there constraints such as a conservation area, listed status or a tight boundary?
- Will the project change how the whole house works, not just add one room?
- Do you want someone independent overseeing builders on site?
The more "yes" answers, the stronger the case for a fully qualified architect. Their training covers spatial design, light and the way a building reads as a whole, which tends to show in projects where the existing house is difficult or the goals are high.
Cost is a real factor and should be weighed honestly. Architects usually charge either a percentage of the build cost or a fixed fee per stage. They can be engaged for the full journey, from concept to overseeing construction, or only for the early design and planning stages, after which others take over. Engaging someone only up to planning is a common way to control fees while still getting considered design.
A well-resolved design can also save money later. Fewer changes on site, clearer drawings for builders to price against, and a layout that avoids expensive structural moves all reduce risk. Poor design tends to surface as cost during the build, when changes are most expensive.
Single-storey versus two-storey options
The biggest design choice is usually how much you build upward as well as outward. Each route carries different costs, planning sensitivities and structural demands.

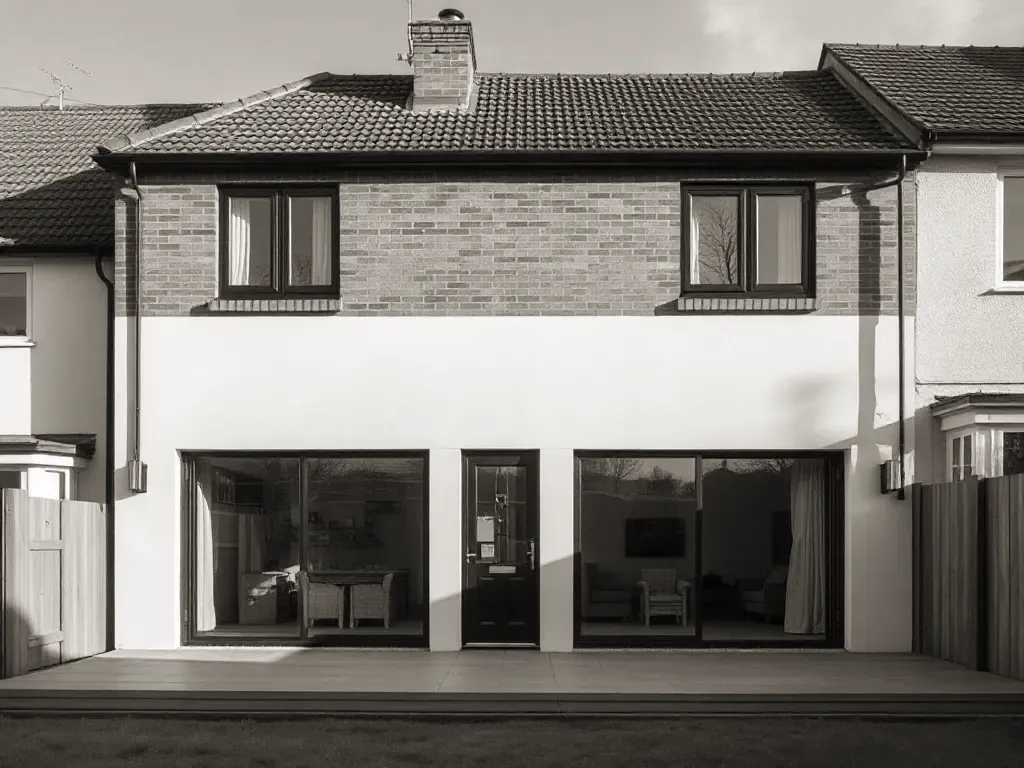

A single-storey extension adds ground-floor space, most often at the back. A rear extension extends into the garden and typically creates an open kitchen-diner or living space. A side-return extension fills the narrow alley alongside a terraced or semi-detached house, a strip of land that is often wasted. Side-return designs are popular on Victorian terraces because they widen a cramped kitchen without losing much garden.
Single-storey work is generally simpler to design and more likely to fall within permitted development, though limits on depth, height and proximity to boundaries apply. The main design challenge is light: deeper extensions can leave the centre of the house dim, so rooflights, glazed doors or a partly glazed roof are often built in.
A two-storey extension adds rooms on both the ground and upper floors, commonly a larger kitchen below and a bedroom or bathroom above. It delivers more space for each square metre of footprint, which can make it better value per room. It is, however, more involved.
Two-storey work raises questions a single storey does not. It is more likely to need full planning permission, partly because of its effect on neighbours' light and outlook. The foundations and structure must carry greater loads, and matching the roof, eaves and windows to the existing house takes care if it is not to look bolted on. Disruption during the build is usually greater too.
There is no single right answer. The choice depends on what rooms you actually need, how much garden you are willing to lose, your budget per square metre, and what the site and planning context will allow. A capable designer will test more than one option against your brief before settling on a direction, so the trade-offs are clear before money is committed.
Updated: June 2026
